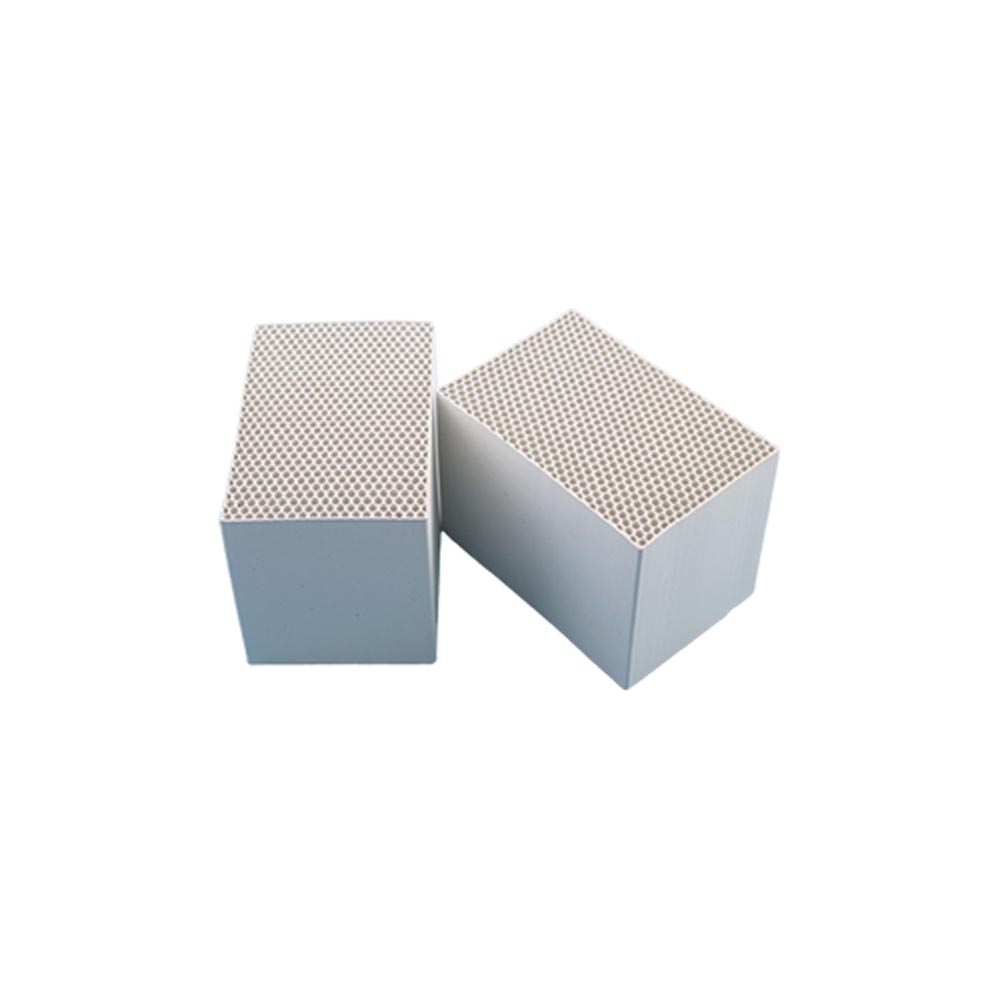

Honeycomb Ceramic

Honeycomb ceramic regenerators can reduce the heat loss of exhaust gas, improve combustion conditions, improve furnace heat exchange conditions, and reduce exhaust gas emissions from thermal equipment and harmful gas emissions.

Honeycomb ceramic parameter

Property	Material
	Corundum Mullite	Mullite	Cordierite mullite	Cordierite
Compressive strength MPa	C-axis direction≥20 A (B) axis direction≥4	C-axis direction≥20 A (B) axis direction≥4	C-axis direction≥20 A (B) axis direction≥4	C-axis direction≥20 A (B) axis direction≥4
Apparent density g/cm3	＞0.9	0.6~1.1	0.5~0.9	0.4~0.8
Coefficient of thermal expansion 1/℃ RT~800℃	≤6×10-6	≤5.5×10-6	≤3×10-6	≤2.5×10-6
Thermal shock resistance temperature ℃	≥300	≥300	≥400	≥500
Refractoriness under load ℃ 0.1MPa	≥1500	≥1450	≥1350	≥1250
Specific heat capacity J/(kg·K)	≥800	≥800	≥750	≥750

Size of honeycomb ceramics

Hajmi：100×100×100、100×150×150、150×150×150、150×150×300(mm)；Hole：25×25、40×40、43×43、50×50、60×60；Hole type: square, rectangle, regular hexagon, circle, triangle

Ceramic honeycomb supplier

Rongsheng kompaniyasini tanishtirish

Rongsheng Company is a professional supplier of refractory materials, bilan 10 yillik eksport tajribasi, dan ortiq eksport qilmoqda 80 mamlakatlar. The main products of Rongsheng Company include various o'tga chidamli g'ishtlar, shakllanmagan refrakter materiallar, metallurgiya materiallari, issiqlik izolyatsiyalash materiallari, va hokazo.
