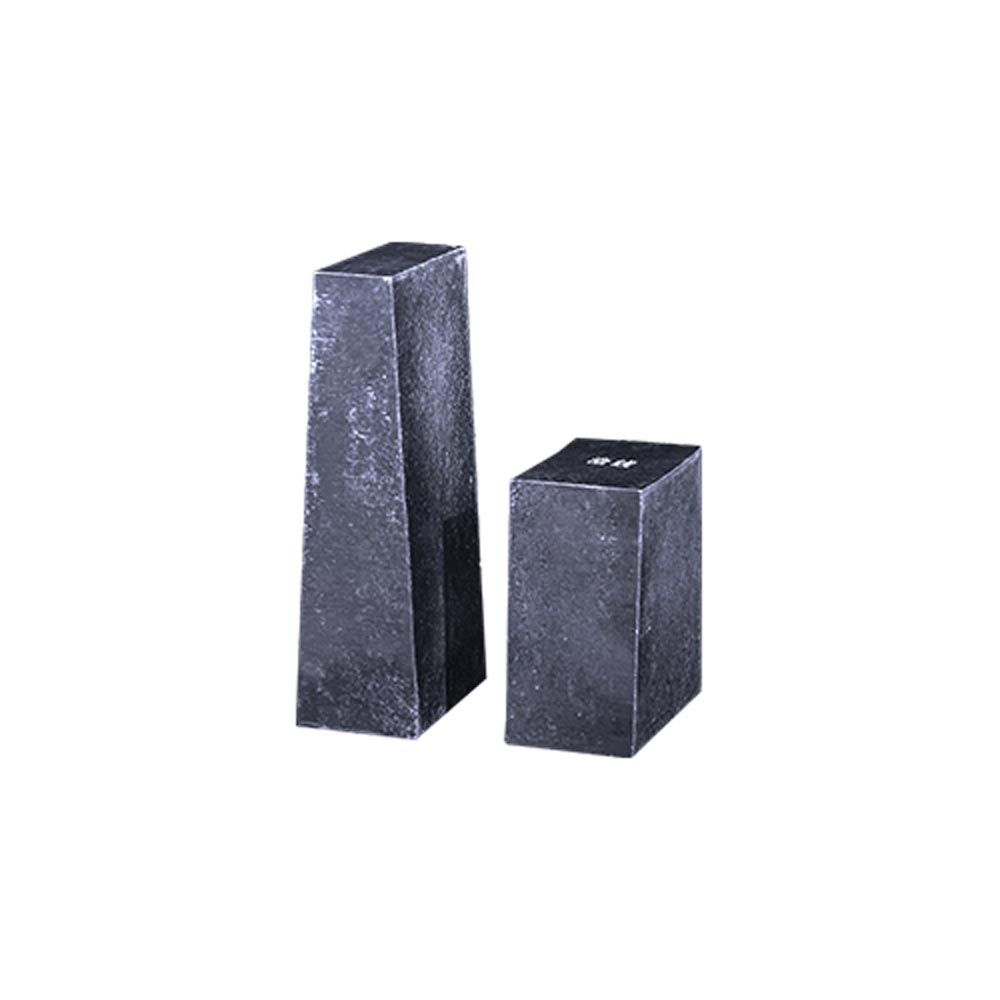

Magnesia carbon brick is made of magnesia and carbon materials, and various non-oxide additives are added. Magnesia carbon brick is a kind of basic refractory material. As a composite refractory material, magnesia carbon brick effectively utilizes the slag erosion resistance of magnesia and the high thermal conductivity and low expansion of carbon.
The main characteristics of magnesium carbon bricks
- High-temperature resistance: Mag carbon bricks have a high softening point, usually at 1900-2000°C, which can meet the high-temperature requirements of most industrial production
- High slag resistance: Magnesia carbon bricks can react with various metal slags at high temperatures to form a protective layer, cutting off the further reaction between slag and bricks, so they have high resistance to slag erosion, especially suitable for slag content Large and complex occasions.
- Low water ingress rate: Magnesia carbon bricks have high density, almost no water absorption, good water resistance, and will not be damaged by water.
- Thermal shock resistance: The softening point of magnesia carbon bricks can reach above 1900°C, and the service temperature range is very wide, which can be used in most industrial furnaces.
Magnesite carbon brick physical and chemical indicators
Item | Index | ||||
MT10A | MT12A | MT14A | MT16A | MT18A | |
MgO % | ≥80 | ≥78 | ≥76 | ≥74 | ≥72 |
C % | ≥10 | ≥12 | ≥14 | ≥16 | ≥18 |
Apparent porosity % | ≤4 | ≤4 | ≤3.5 | ≤3.5 | ≤3.0 |
Bulk density g/cm3 | ≥3.02 | ≥2.97 | ≥2.95 | ≥2.92 | ≥2.89 |
Cold Crushing Strength MPa | ≥40 | ≥40 | ≥38 | ≥35 | ≥35 |
High temperature flexural strength MPa 1400℃×0.5h | ≥6 | ≥6 | ≥10 | ≥8 | ≥10 |
Features of magnesia carbon brick
- Good high-temperature resistance.
- Strong slag resistance.
- Good thermal shock resistance.
- Low creep at high temperatures.
- Low thermal expansion rate, not easy to deform.
- Not easy to peel off.

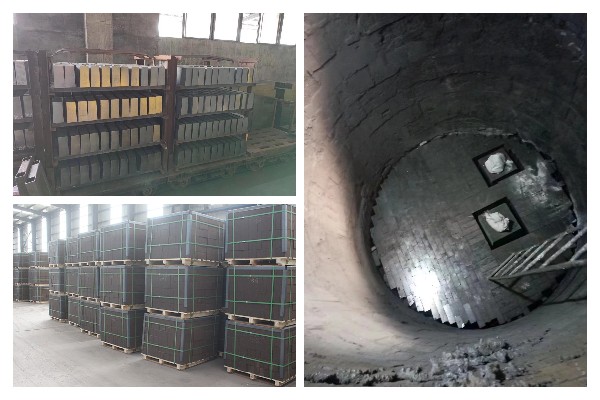

Welcome to visit Rongsheng factory
If you want to buy a batch of отқа төзімді кірпіш, you can come to the Rongsheng factory for a visit, and we can also provide some samples. The delivery time depends on the number of refractory bricks ordered, usually 7-12 days.
