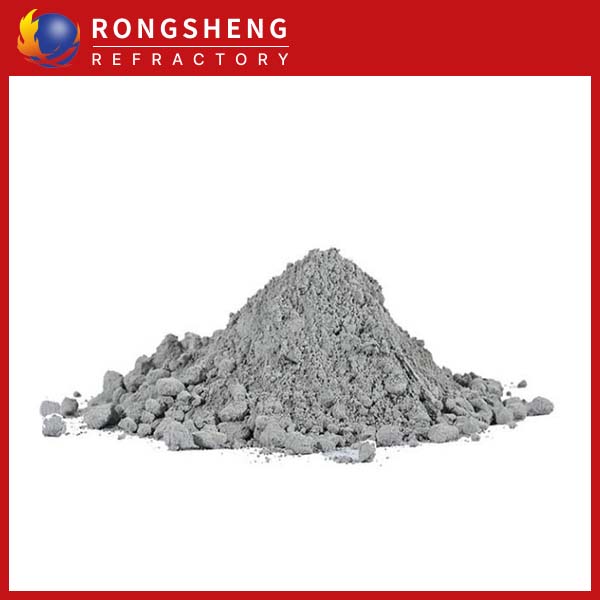

Moulages réfractaires en corindon pour fours à haute température

Corundum refractory castables is a high-performance matériel réfractaire, widely used in the lining of various high-temperature industrial furnaces and equipment. It has excellent refractory performance, résistance à la corrosion, et résistance mécanique, and can meet the requirements of long-term stable operation in high-temperature environments.

Physical and chemical indicators of corundum castables

Indice		Corundum Castable Refractory
Model		RS-85
Chimique Composition（%）	Al2o3 ≥	85
	Sio2 ≤	6
Densité apparente g/cm³	110℃，24h ≥	2850
Résistance à la flexion à froid MPA	110℃，24h ≥	8
	1100℃，3h ≥	12
	1350℃，3h ≥	12
Cold pressure strength MPA	110℃，24h ≥	80
	1100℃，3h ≥	95
	1350℃，3h ≥	110
Taux de changement de la ligne brûlante	1100℃，3h ≥	-0.3
	1350℃，3h ≥	-0.5
Consommation d'eau de gâchage %		5-6%
Operating temperature ℃		1600

Characteristics of corundum refractory castables

1. Good high-temperature stability
   Corundum castable is made of alumina as the main raw material and is fired at high temperatures. Alumina has excellent properties such as high melting point, haute dureté, and high chemical stability, which makes corundum castable extremely stable and durable in high-temperature environments. Corundum castable can withstand high temperatures up to 1700℃, and within this temperature range, its volume stability, résistance au fluage, and thermal shock resistance are very excellent.
2. Forte résistance à la corrosion
   Corundum castable has extremely strong corrosion resistance and can resist corrosion from various acids, alcalis, salts, and other chemical substances. It is suitable for various highly corrosive environments, such as kilns and equipment linings in steel smelting, fusion de métaux non ferreux, industrie chimique, verre, et d'autres industries.
3. Haute résistance mécanique
   Pendant le processus de préparation, corundum castables are made to have high mechanical strength by adding the appropriate amount of binder and aggregate. It can withstand greater pressure and friction in high-temperature environments and is not prone to cracking, peeling, and other phenomena, which ensures the long-term stable operation of kilns and equipment.

Application range of corundum castables

Steel smelting industry

In the steel smelting industry, corundum castables are widely used in the lining of blast furnaces, convertisseurs, fours électriques, and other equipment. This equipment needs to withstand harsh conditions such as high temperature, high pressure, and high corrosion, and corundum castable is an ideal material that can meet these requirements. The use of corundum castables can significantly improve the fire resistance and corrosion resistance of the equipment and extend its service life.

Non-ferrous metal smelting industry

The non-ferrous metal smelting industry also requires the use of high-temperature kilns and equipment, and the lining materials of these equipment also need to have excellent refractory and corrosion resistance. Corundum castables have also been widely used in these fields, such as aluminum smelting, copper smelting, zinc smelting, etc..

Chemical and glass industries

In the chemical and glass industries, many chemical reactions need to be carried out at high temperatures, and these reactions are often accompanied by strong corrosion and erosion. Corundum castables are also widely used in these fields, such as kilns and equipment linings in petrochemical, fertilizer, glass fiber, and other production lines.

Precautions for construction of corundum castables

1. After adding water to the castable, la construction doit être achevée dans les 30 minutes. It is strictly forbidden to return the material for mixing and add water for the second time.
2. The construction of corundum castable should be carried out continuously. Before the initial setting period of the previous layer of castable, the next layer of castable should be poured. If the construction gap exceeds its initial setting period, it should be treated according to the requirements of the construction joint.
