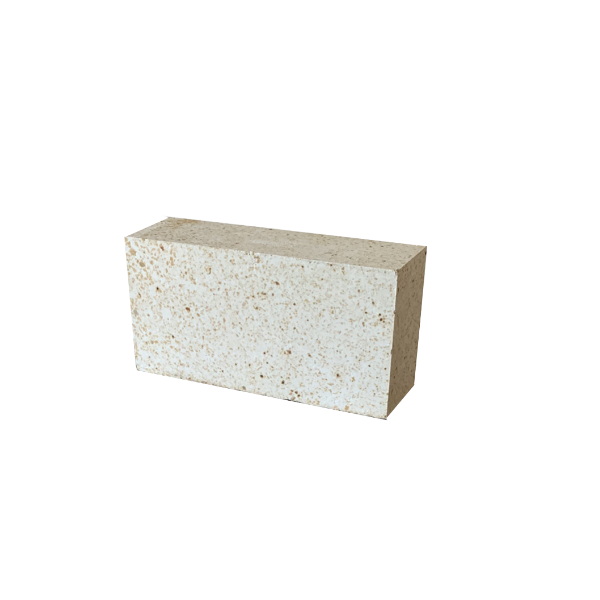

Андалузитовая цэгла для печы

Andalusite refractory bricks use andalusite as raw material, add sillimanite powder, mullite powder, and other powders, add binders according to the proportion, and strictly control the particle size, grade, and impurities such as TiO2 and R2O of the raw materials. After smelting, forming, and drying, it is fired at high temperatures, which can meet the needs of different parts and working environments of modern blast furnace hot blast stoves, and plays an important role in improving the service life of blast furnace hot blast stoves.

Andalusite brick’s physical and chemical indicators

Пункт	Паказальнік
	RH155	RH150	RH145	RH140	RH135
Ал2О3  %	≥69	≥65	≥61	≥57	≥53
Fe2О3  %	≤1,0	≤1,0	≤1,2	≤1,2	≤1,5
TiO2  %	≤0,5	≤0,5	≤0,5	≤0,6	≤0,6
Bulk Density g/cm3	≤20	≤20	≤20	≤20	≤20
Уяўная сітаватасць %	2.55~2.70	2.50~2.65	2.45~2.60	2.40~2.55	2.35~2.50
Cold Crushing Strength MPa	≥55	≥55	≥50	≥50	≥40
0.2Mpa Refractoriness Under Load ℃	≥1700	≥1700	≥1650	≥1600	≥1520
Пастаянная лінейная хуткасць змены %	1500℃×2h ±0.2	1500℃×2h ±0.2	1500℃×2h ±0.2	1450℃×2h ±0.2	1450℃×2h ±0.2
Creep Rate % 0.2MPa 0~50h	≤0.8 1550℃	≤0,8 1500℃	≤0,8 1450℃	≤0,8 1400℃	≤0,8 1350℃

Features of andalusite brick

1. Ўстойлівасць да высокіх тэмператур, зносаўстойлівасць, and corrosion resistance.
2. Добрая ўстойлівасць да тэрмічнага ўдару.
3. Low creep rate.
4. High softening temperature under load.
5. Can reduce harmful impurities.
6. Good thermal peeling resistance.
7. Various specifications
8. Adequate inventory, delivery on time

The raw material of andalusite brick

Mullite powder, andalusite fine powder, sillimanite fine powder, гліна, silicon micro powder, г.д.

Andalusite refractory brick manufacturing process

Prepare the raw materials according to the formula ratio, then put the mullite powder, andalusite fine powder, and sillimanite fine powder into the sand mixer for mixing, then add clay and 2% of the total weight of the raw materials for mixing, and then add silicon The micro powder is mixed and pressed into adobe by a brick press machine. After the adobe is dried, it is put into a firing kiln for sintering, гэта, it is fired into an andalusite refractory brick.

The use of andalusite bricks in hot blast stoves

For hot blast furnace walls, checker bricks, дах печы, and combustion chamber (andalusite low creep series).

Andalusite brick transportation

After the factory receives the order, it will be produced as soon as possible and will be shipped within 7-12 дзён. Customized products will take longer.

Relevant certificate
